SQL Servers Virtual Columns and Row Cracking

In order to access row structures there are several functions within SQL Server that are beneficial. I have listed these below with the descriptions taken from the actual functions.

sys.fn_GetRowsetIdFromrowdump — Cracks the output of %%rowdump%% virtual column and returns the rowset id
sys.fn_rowdumpCracker — Cracks the output of %%rowdump%% virtual column
sys.fn_physlocFormatter — Formats the output of %%physloc%% virtual column
sys.fn_physlocCracker — Cracks the output of %%physloc%% virtual column

The first aspect to highlight is the existence of virtual columns which can be used within these functions, these are the %%Something%% columns.

Okay, now lets see these functions in action. Please create the following test environment:

CREATE DATABASE [MyTestDatabaseJG]
GO
USE [MyTestDatabaseJG]
GO
CREATE TABLE [dbo].[test]
(
[id] INT IDENTITY(1,1) PRIMARY KEY NONCLUSTERED,
[dt] DATETIME NOT NULL,
[s] VARCHAR(14) NOT NULL,
[filler] CHAR(4000)
)
INSERT INTO [dbo].[test] ([dt],[s]) VALUES ('1900-01-01','I am row One')
INSERT INTO [dbo].[test] ([dt],[s]) VALUES ('2000-01-01','I am row Two')
INSERT INTO [dbo].[test] ([dt],[s]) VALUES ('2100-01-01','I am row Three')
INSERT INTO [dbo].[test] ([dt],[s]) VALUES ('2200-01-01','I am row Four')
GO
/*
CREATE PARTITION FUNCTION [pfDataAllSplitOnUTC](DATETIME) AS RANGE RIGHT FOR VALUES (N'2000-01-01T00:00:00.000')
GO
CREATE PARTITION SCHEME [psDataAllPrimary] AS PARTITION [pfDataAllSplitOnUTC] ALL TO ([PRIMARY])
GO
*/
CREATE CLUSTERED INDEX [cl] ON [dbo].[test] ([dt] ASC)
--ON [psDataAllPrimary] ([dt])

sys.fn_GetRowsetIdFromRowDump

The first function that we will look at is called fn_GetRowsetIdFromrowdump and will display the partition_id for each of the rows. If you uncomment the code above you can partition the table and see which rows end up where like I have done in the image below.

SELECT
%%rowdump%% [rowdump],
sys.fn_GetRowsetIdFromRowDump(%%rowdump%%) [partition_id],
*
FROM [dbo].[test] t

sys.fn_RowDumpCracker

The virtual column in the previous example is %%rowdump%% which contains information about the rows construction not the actual row. If this is used with fn_rowdumpCracker it will crack open this row information.

Note that there are several caveats to it`s use which have been documented within the function.

1. If inrowLength is 0 it implies the column is null or 0-length
2. If information about a column is not output then it must be a trailing null or 0-length variable length column.
3. Filters out columns that have been dropped.
4. Filters out uniquifiers.
5. Does not report clustering key columns in non-clustered indexes
6. Rowdump format: this explains the constants used below

||<col 1>| … | 8 bytes |4 bytes |10bytes | … | 10 bytes

SELECT %%rowdump%% [rowdump],
rc.*
FROM [dbo].[test] t
CROSS APPLY sys.fn_RowDumpCracker(%%rowdump%%) rc

sys.fn_physlocFormatter and fn_physlocCracker

The next virtual column that we come across is %%physloc%% which gives the physical row location as a binary(8) and this can be used with fn_physlocFormatter to format it as [file_id:page_id:slot_id] or/and with fn_physlocCracker to split it into the 3 columns.

SELECT %%physloc%% [physloc],
sys.fn_PhysLocFormatter(%%physloc%%) [file_id:page_id:slot_id],
plc.*
FROM [dbo].[test]
CROSS APPLY sys.fn_PhysLocCracker(%%physloc%%) plc

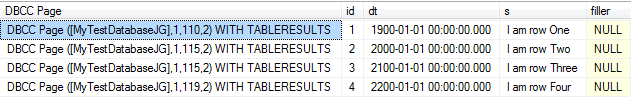

As I tend to use DBCC Page a lot what I do is use the %%physloc%% column to build up the statement like this:

SELECT 'DBCC Page (['+DB_NAME()+'],'
+CAST(CAST(CONVERT(BINARY(2),REVERSE(SUBSTRING(%%physloc%%,5, 2))) AS INT) AS VARCHAR(MAX))+','
+CAST(CAST(CONVERT(BINARY(4),REVERSE(SUBSTRING(%%physloc%%,1,4))) AS INT) AS VARCHAR(MAX))+',2)
WITH TABLERESULTS' [DBCC Page],*
FROM [dbo].[test]

Additional Note

Finally while I am talking about virtual columns there is one more called %%lockres%% which returns? Yes, the locking resource which will be a hash or [file_id:page_id:slot_id] if you are dealing with a heap.

SELECT %%lockres%% [lockres],*
FROM [dbo].[test] t
